Diesel DPF Cleaning Toolkit

Product information
Once a diesel particulate filter is totally clogged with deposits (soot) it often has to be completely replaced. Depending on the car make and model, a new diesel particulate filter, including dismantling and fitting, easily costs 1000 to 5000 euros. The DPF cleaning kit is more economical than replacing the diesel particulate filter and saves time in addition to money. The workshop can fully clean the diesel particulate filter in a maximum of one hour. A quick and effective way to revive a blocked DPF without having to remove it from the vehicle.

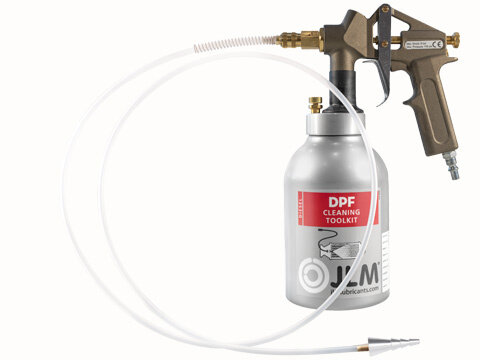

The JLM Diesel DPF Cleaning Toolkit comprises a compressed air spray gun with built-in pressure regulator, a sprayer tank specially coated for JLM, a one and a half metre long flexible, transparent hose, two conical spray nozzles for easy fitting. The toolkit can only be used in combination with the J02230 JLM Diesel DPF Cleaning & Flush Fluidpack. The JLM DPF Cleaning Probe is available as an option.

With its flexible hose and the conical spray nozzles, the JLM Diesel DPF Cleaning Toolkit can clean the diesel particulate filter on most car makes and models, regardless of the position of the filter.

Instructions for use
Take the correct protective measures before using JLM cleaning products. Wear gloves and safety goggles throughout the entire cleaning process.
Bring the engine up to operating temperature and then switch it off. Fill the sprayer tank with 500 millilitres of highly concentrated JLM DPF Cleaning Fluid. Connect the spray gun to the compressed air; the built-in pressure regulator automatically regulates the pressure to a maximum of 5 bar.

Connect the conical spray nozzle to the rubber hose on the front pressure sensor on the diesel particulate filter. Gradually spray the cleaning fluid through the hose into the diesel particulate filter over the course of approximately one minute. Do this steadily and ensure that the fluid does not flow back into the sprayer tank. Ensure that the fluid does not leak onto surfaces that become hot when the engine is running.

Allow the fluid to soak into the diesel particulate filter for two or three minutes. Place a liquid receptacle underneath the exhaust. Run the engine for two to three minutes at between 2000 and 3000 revs. Foam will now come out of the exhaust. Switch the engine off.

Fill the fluid tank with JLM Diesel DPF Flush Fluid. Start the engine and connect the conical spray nozzle to the rubber hose on the front pressure sensor on the diesel particulate filter. Run the engine for two to three minutes at between 2000 and 3000 revs once again. Now gradually spray all of the flush fluid through the diesel particulate filter.

It is important to use the entire one and a half litres of flush fluid to guarantee the full effect. Thoroughly dry the sensor hose after cleaning. If you do not do this it may adversely affect the values measure by the car's electronic control unit and cause breakdowns.

For complete and perfect regeneration now add JLM Diesel Particulate Filter Cleaner J02210 to the fuel tank. Start the diesel particulate filter forced regeneration process using diagnosis equipment and the car's electronic control unit or approximately 20 minutes of motorway driving. When doing so, follow the procedures of the vehicle manufacturer concerned. Thoroughly clean the JLM Diesel DPF Cleaning Toolkit with water after use. If the diesel particulate filter is still blocked after treating with JLM Cleaning and Flush Fluid it will then have to be replaced.

Watch our comprehensive instruction video via this link

We recommend that you add JLM Diesel DPF ReGen Plus to your full fuel tank regularly to maintain your diesel particulate filter as well as possible and to guarantee the longest possible service life after cleaning. In extreme cases and as soon as the orange Check DPF warning light illuminates on your dashboard we recommend adding JLM Diesel Particulate Filter Cleaner to your fuel.

• Cleans and restores blocked diesel particulate filters
• Economical alternative to an expensive, new diesel particulate filter
• There is no need to dismantle the diesel particulate filter
• Fits almost all car makes and models
• Also dissolves un-burned oil remnants
• Does not affect the diesel particulate filter and internal material
